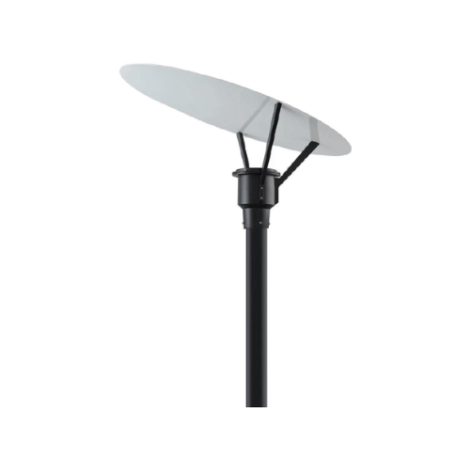

Foreshore A

Specifications

  • IP66 Rated
  • Die-cast aluminium main body
  • IK09 Rating
  • Cree COB LED source/ Meanwell Power supply
  • The Diffuser is a clear anti-UV polycarbonate
  • Sealed with Silicone Gasket
  • Anti-corrosion with electrophoresis process
  • 4000K Standard colour temp, other colours available upon request.
  • 50W Standard, other wattage upon request
  • Photocell, Short cap, Nema socket, Zhaga socket options
Dimensions

h: 567mm x w: 856mm
76mm Spigot

Part Number

DL-AL-LED-832L

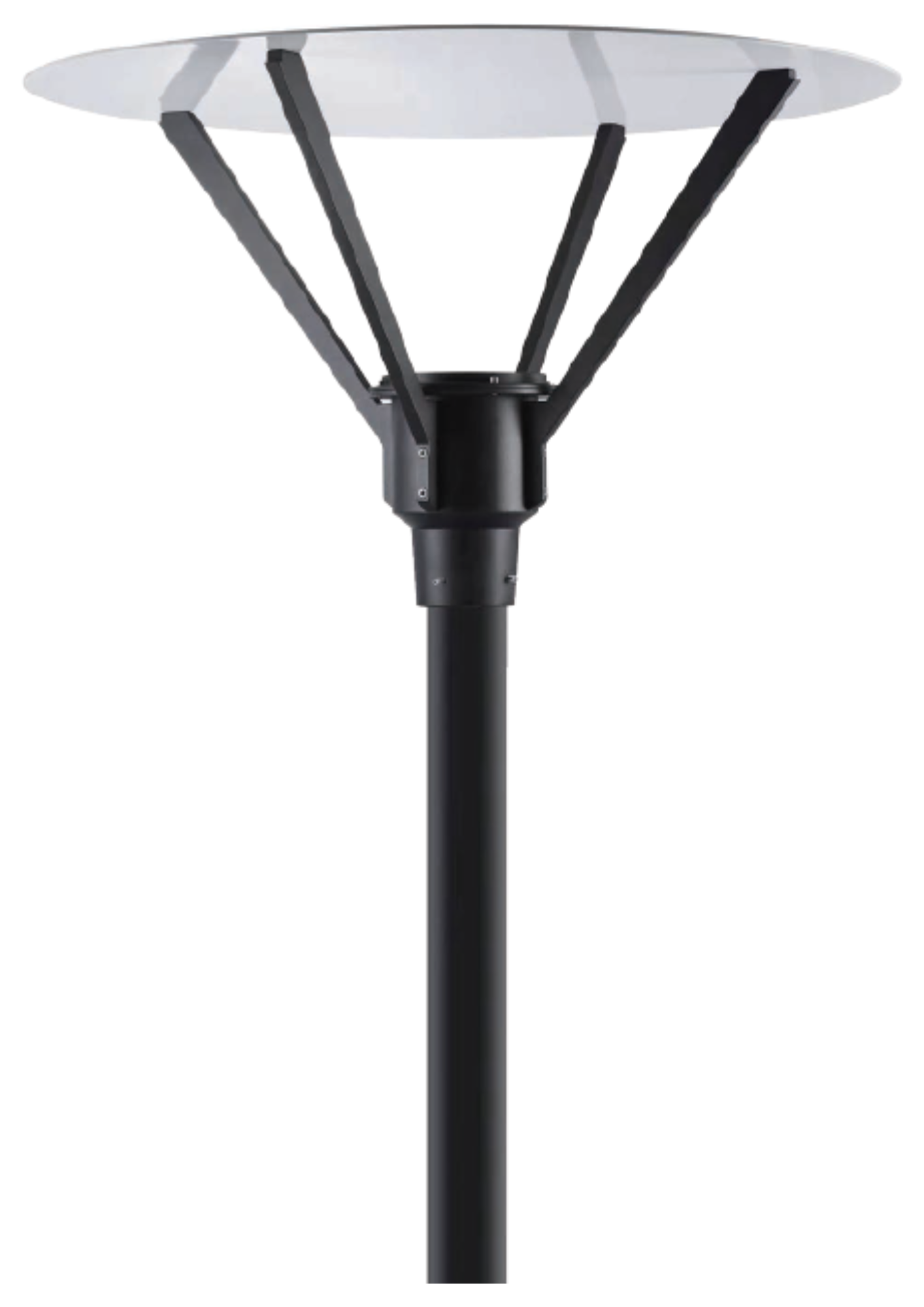

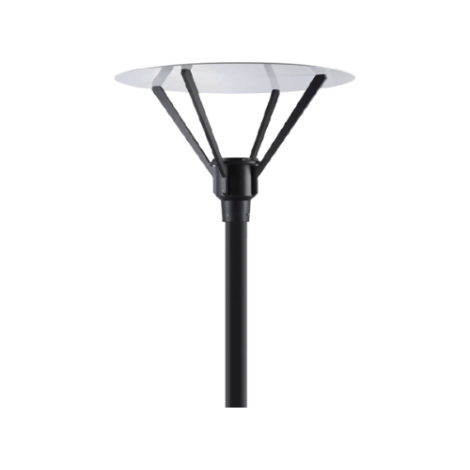

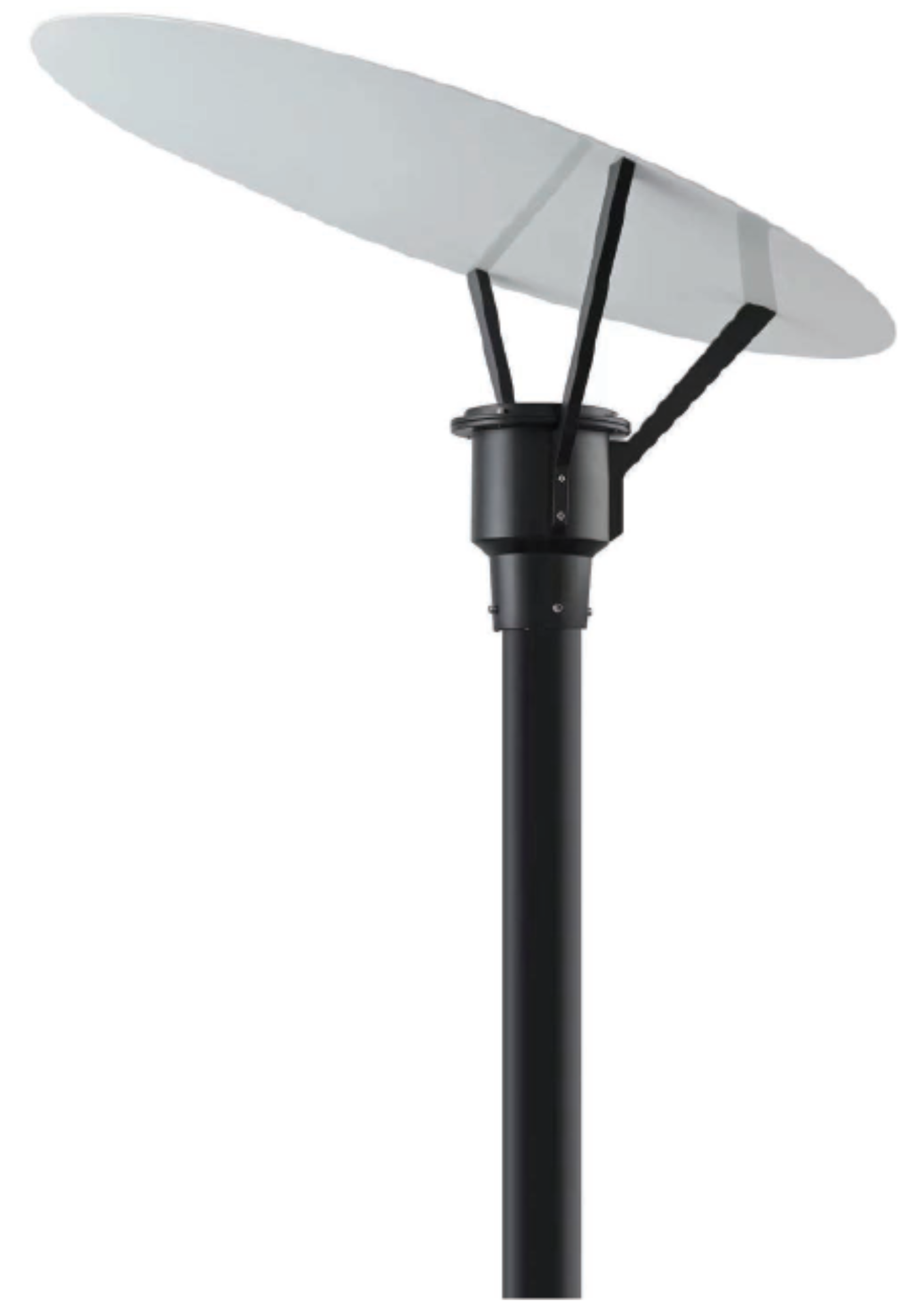

Foreshore H

Specifications

  • IP66 Rated
  • Die-cast aluminium main body
  • IK09 Rating
  • Cree COB LED source/ Meanwell Power supply
  • The Diffuser is a clear anti-UV polycarbonate
  • Sealed with Silicone Gasket
  • Anti-corrosion with electrophoresis process
  • 4000K Standard colour temp, other colours available upon request.
  • 50W Standard, other wattage upon request
  • Photocell, Short cap, Nema socket, Zhaga socket options
Dimensions

h: 475mm x w: 800mm
76mm Spigot

Part Number

DL-AL-LED-831L

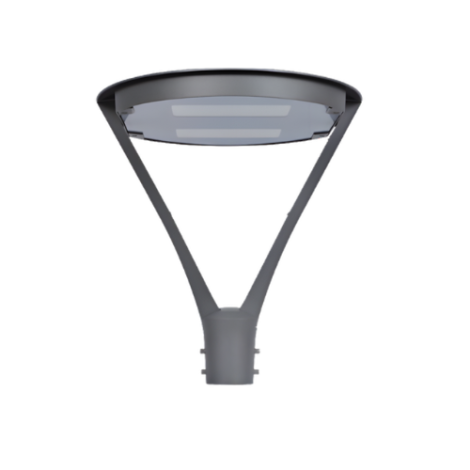

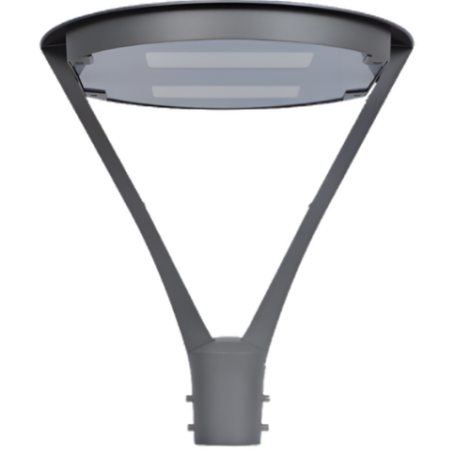

VS-480

Specifications

  • The main body is made of Die-casting aluminum alloy.
  • The diffuser is an anti-UV tempered glass for high efficiency and vandal resistance.
  • 60mm spigot.
  • Lumileds led the chip and Meanwell driver.
  • 4000K Standard 2700-6500K colour temperature options.
  • Tamper-proof fixings for increased vandal resistance.
  • IP66.
  • IK09.
Dimensions

h: 520mm x w: 480mm
60mm Spigot

Part Number

VS-480

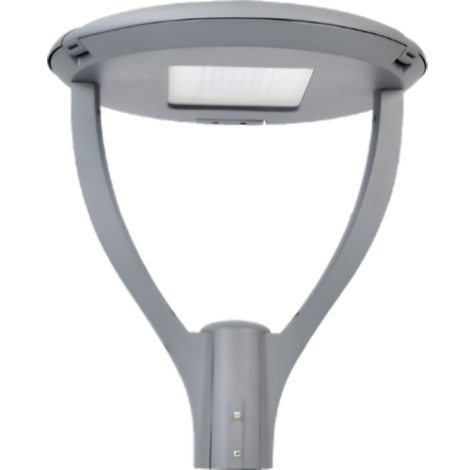

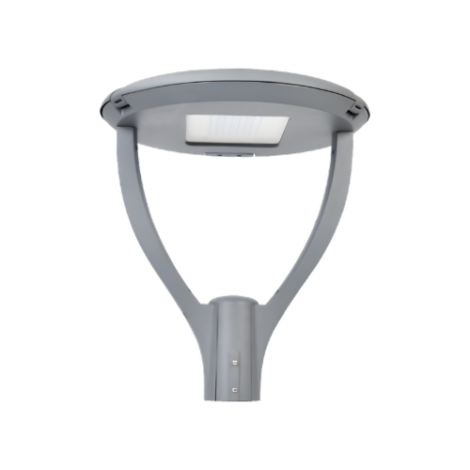

VS-490

Specifications

  • IP66 Rated
  • Die-cast aluminium main body
  • IK09 Rating
  • Lumiled LED source/ Meanwell Power supply
  • Powder-coated finish- Black (other colours upon request)
  • The Diffuser is a clear anti-UV polycarbonate
  • Sealed with Silicone Gasket
  • Anti-corrosion with electrophoresis process
  • 4000K Standard colour temp, other colours available upon request.
  • 75W Standard, other wattage upon request
  • Photocell, Short cap, Nema socket, Zhaga socket options.
Dimensions

h: 558mm x w: 490mm
76mm Spigot

Part Number

VS-490

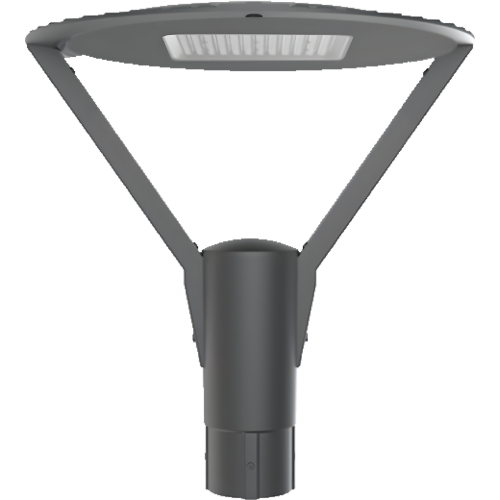

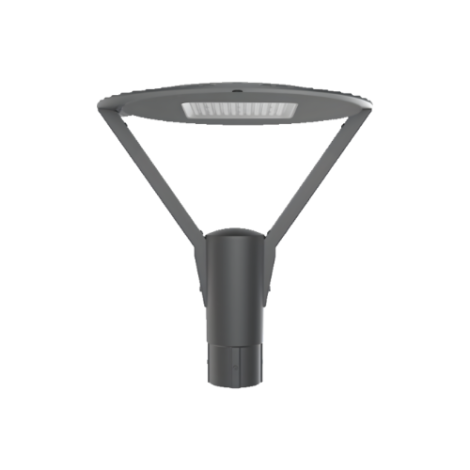

VS-445

Specifications

  • Main body is made of Die-casting aluminum alloy.
  • The diffuser is an anti-UV tempered glass for high efficiency and vandal resistance.
  • 76mm Spigot.
  • Lumileds led the chip and Meanwell driver.
  • 4000k Standard 2700-6500K colour. temperature options.
  • Tamper-proof fixings for increased vandal resistance.
  • IP66.
  • IK09 rating.
Dimensions

h: 480mm x w: 445 mm
76mm Spigot

Part Number
VS-445

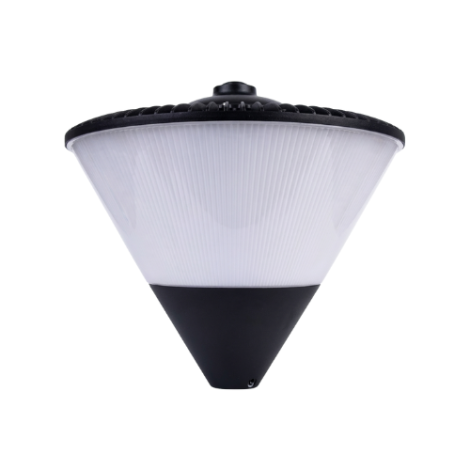

Bathurst LED Area Lighter

Specification

  • IP65 Rated
  • Die-cast aluminium body
  • Powder-coated finish Matt Black
  • Reeded Polycarbonate visor
  • 60mm Spigot m
  • 76mm Spigot available
  • 80 Watt LED
  • 3535 LED Chips 48 Pieces
  • Lumen Output 8,800LM
  • Colour Temperature 4,000K
  • Input voltage AC100-277V
  • LED Life >50,000hr

Applications

  • Parks
  • Pathways
  • School Grounds
  • Retirement Villages
  • Caravan Parks
Dimensions

528mm x 480 mm
60mm Spigot

Part Number
PM528-80L

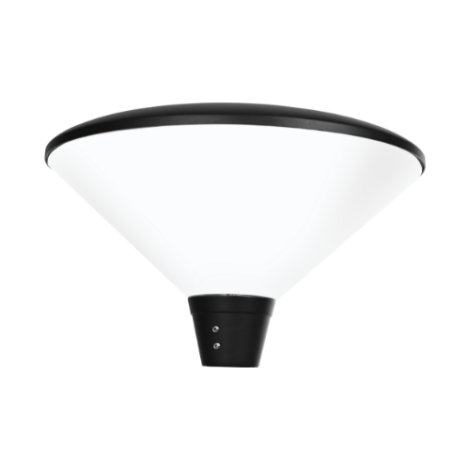

Carousel LED Light

The Carousel LED Light is a modern take on a light used and loved in parks and public spaces all over Australia.
 Made of die-casting aluminium and injection polycarbonate. IP65 and IK08, using quality Lumileds and Meanwell drivers. 4000k standard, but other colours available upon request. The parkway comes in either 50W or 75W versions.
Dimensions

520mm x 330 mm
60mm Spigot

Part Number
PT520C-50L
PT520C-75L


Spigot adaptors avaliable to suit various size poles.

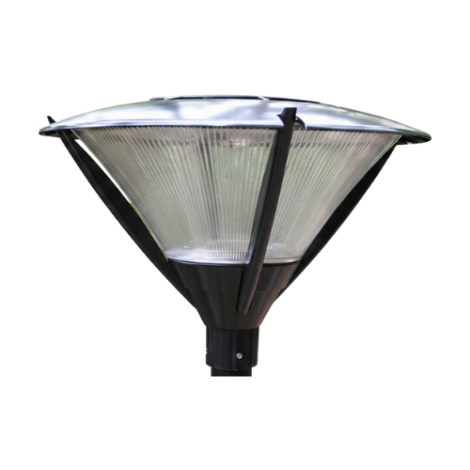

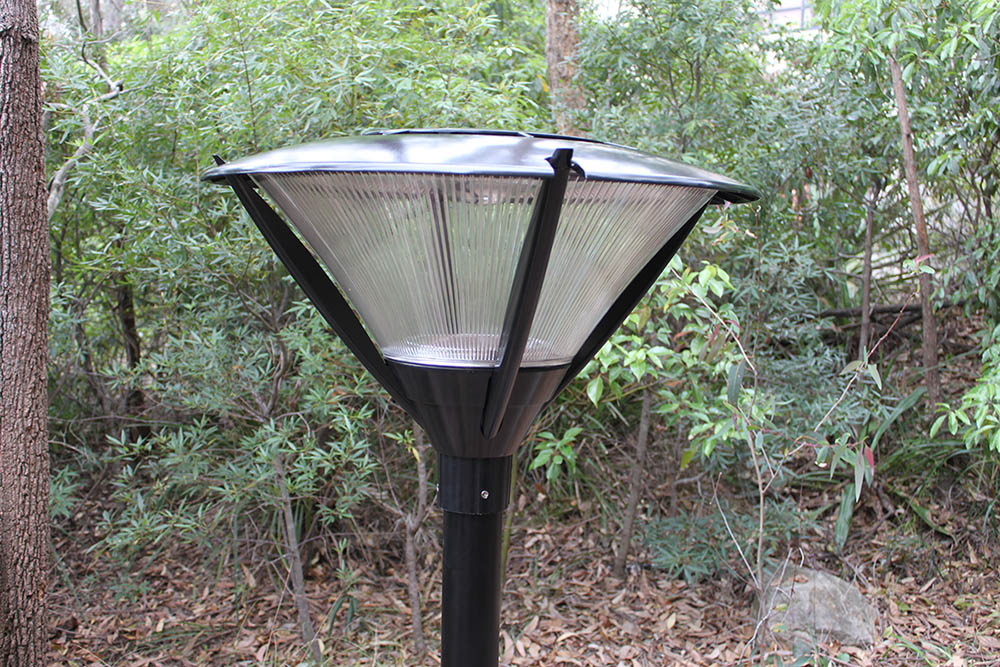

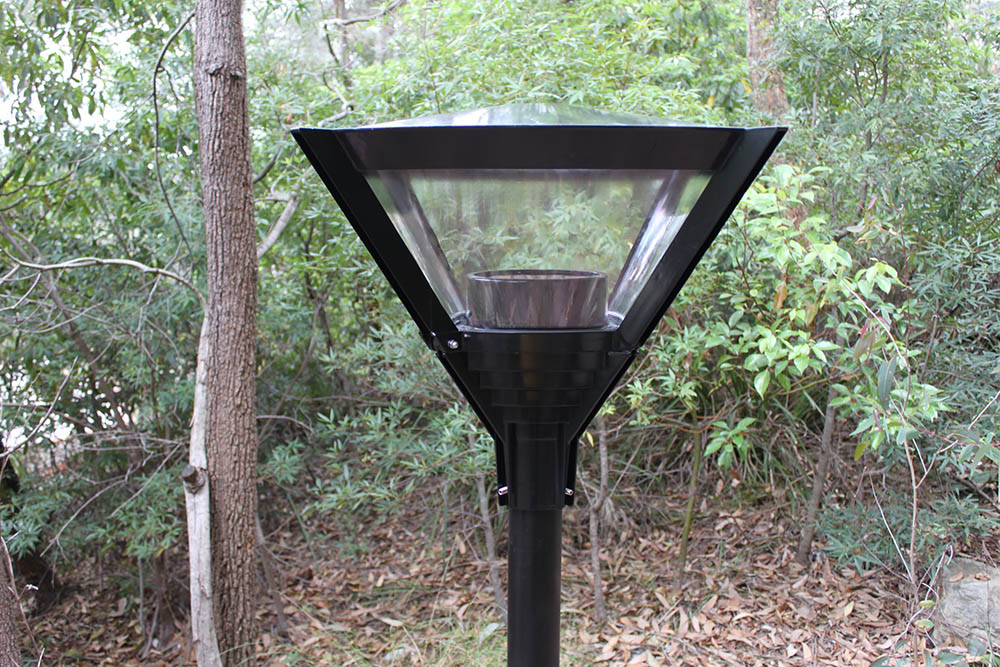

Park Light

The park light is suitable for council parks and gardens, car parks etc.

The parklight post top is made of die cast aluminium, powder coated IP65 with clear ribbed polycarbonate lens and an indirect reflector system.

Dimensions 703mm x 518 mm
Lamps 70w -150w Metal Halide G12 base
54W LED
Pole size 76mm

PL705/70MH
PL705/150MH
PL705/54W LED

Dimensions

703mm x 518mm

PL705 Park

PL705 Park Light

PL705 Park

PL705 Park light aluminium die-cast body
Clear ribbed polycarbonate diffuser
Indirect lamp source

Dimensions 703Dia x H518mm
Lamps 70w MH-150W MH
54W LED Vossloh
Pole spigot suit 76mm

Dimensions

Dimensions 703Dia x H518mm
