Category: Spheres

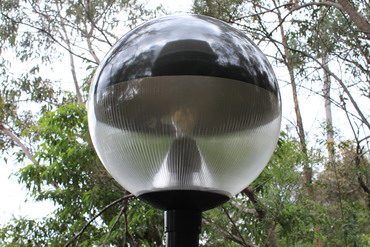

The prismatic black top sphere has been tested and passed as a TYPE 3 luminaire for local road areas and pathways, public activity areas,outdoor car parks.

Complies with ASNZ 1158.3.1:1999

Control Gear

Mercury Vapour – 50w, 80w, 125w.
High Pressure Sodium – 50w, 70w, 150w.
Metal Halide – 70w, 100w, 150w.
PLC – 13w, 18w, 26w.

Dimensions

H:400Dia

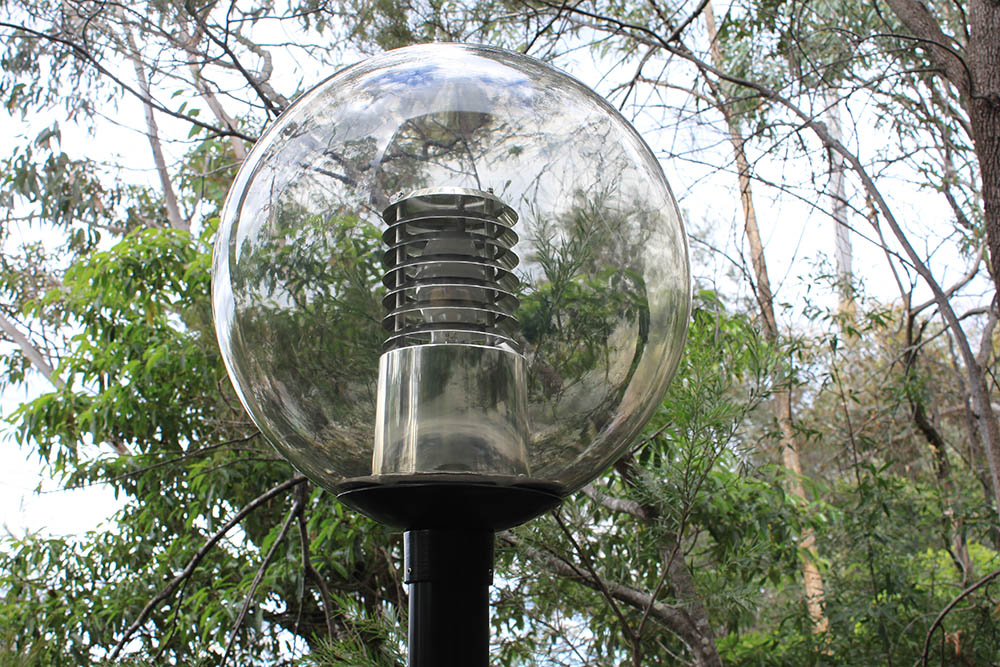

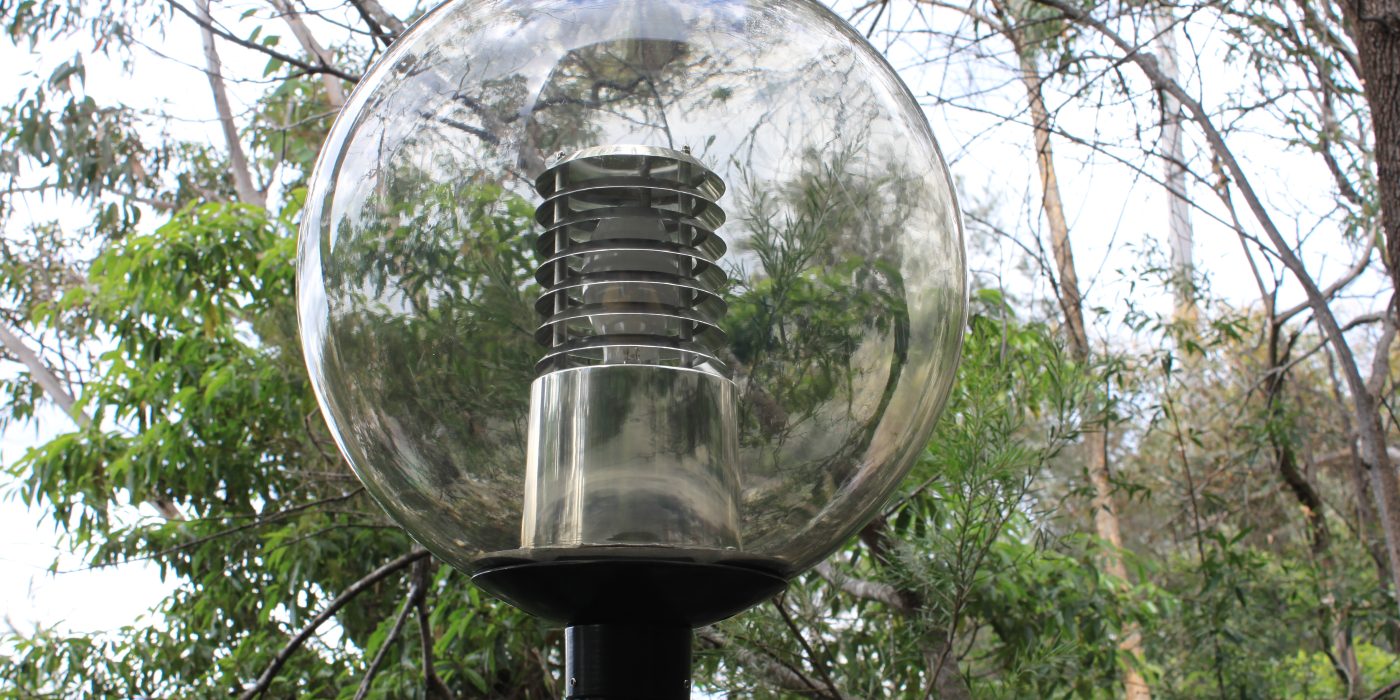

The sphere can be fitted, with an acrylic refractor (AC) or a set of louvres (L) to control light distribution.
All Dasco’s spheres have ES Lamp holder  when fitted.

The canopy sphere projects the light downwards, minimizing any upward light.

Control Gear
ES Lamp holder

Models

Dimensions
H300 Dia

Control gear
ES Lamp Holder

Models

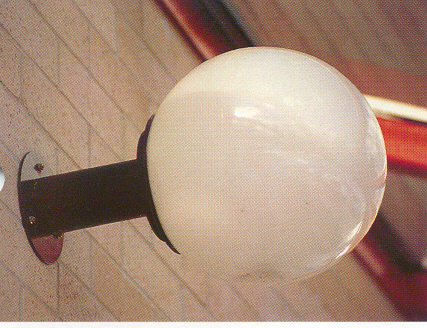

Spheres Wall Bracket

Dimensions
H: Ranging from 300mm to 500mm

ALL of the above can be fitted
M/Vapour, 50w – 250w
Metal Halide 70w -150
High pressure Sodium 70w -250w
LED corn lamps up to 11w – 54W.

When ordering we need to know the pole size and the type of gear you require.

Dimensions

from 250mm up to 600mm

Add to part number when ordering

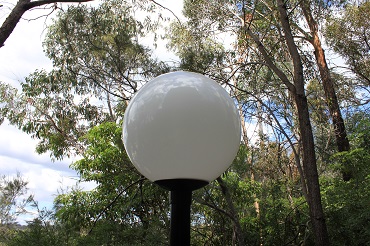

CA clear.    OA opal.    SA smoked. LVR Louvre. PRS for prismatic lens.

All control gear when fitted is integral in head

Eg PT400/ES/CA/LVR

Control Gear
LS Lampholder

LED’s are available on request

Models

Dimensions
H: Ranging from 250mm up to 600mm

All spheres have a standard ES lampholder, Various pole cap sizes are available 60,76,80,89 just add to end of catalogue number, eg PT250OE/ES/60PC

LED ES Lamps Available selectable colour temperatures. 1800K LED Lamp for high Pressure sodium replacement

LED’s available on request

Models
250 mm Diameter Sphere

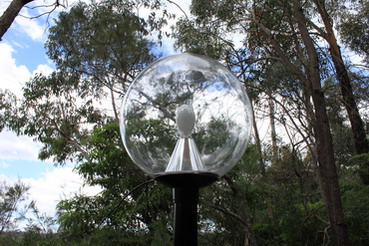

Clear Spheres PMMA

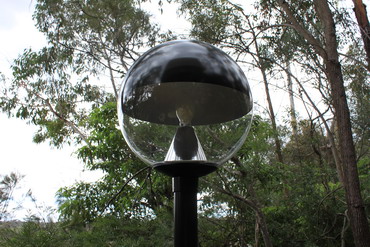

Black Top Spheres

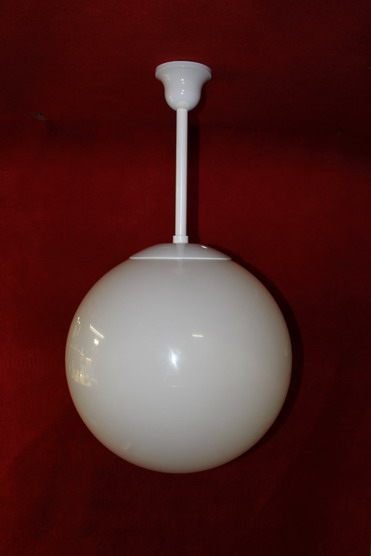

Spheres Ceiling Mount
Spheres

Dimensions
Spheres ranging from 250mm up to 900mm
