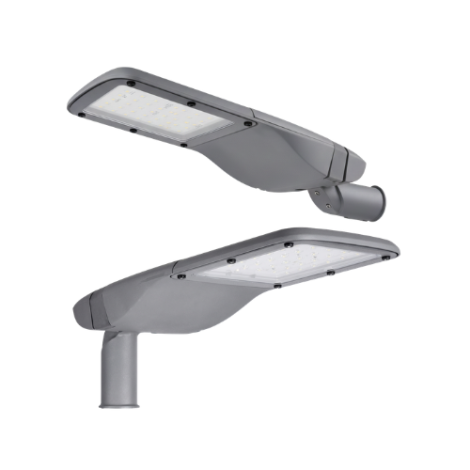

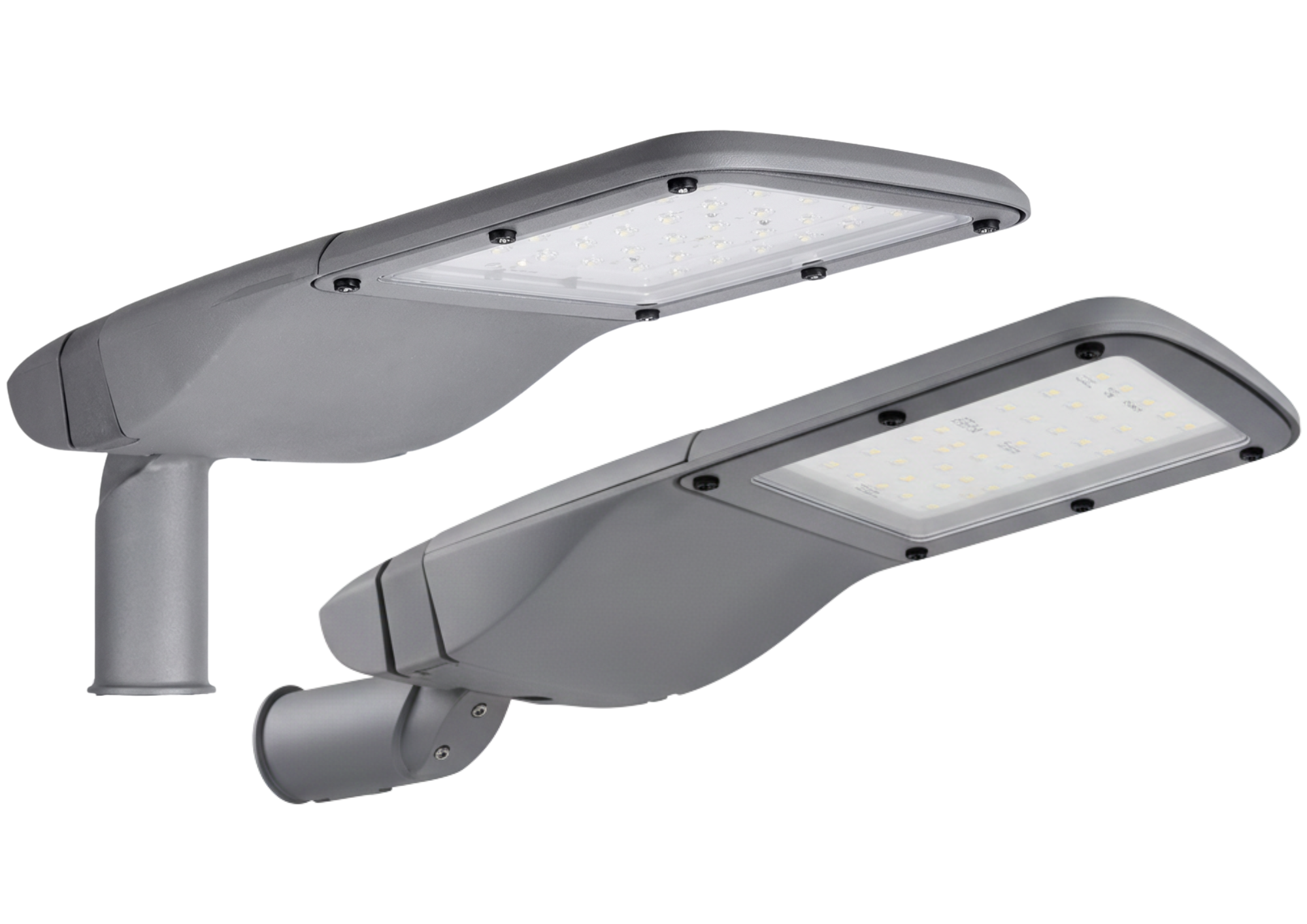

Freeway 120L

Car Park LightsMarch 6, 2026March 6, 2026

Specifications

Die-cast aluminium Housing
Tempered Safety Glass
IP66 Rated
64 Piece Lumileds 5050 LED chip
120-watt LED
Meanwell Driver
Heatproof Silicon Gasket
Powder-coated finish Silver
Stainless steel fixings
Spigot 67mm vertical or horizontal
Colour Temperature 4,000K
14,000 Lumen Output
Dimensions 740 x 344x 149High
Weight 8.5 Kilos

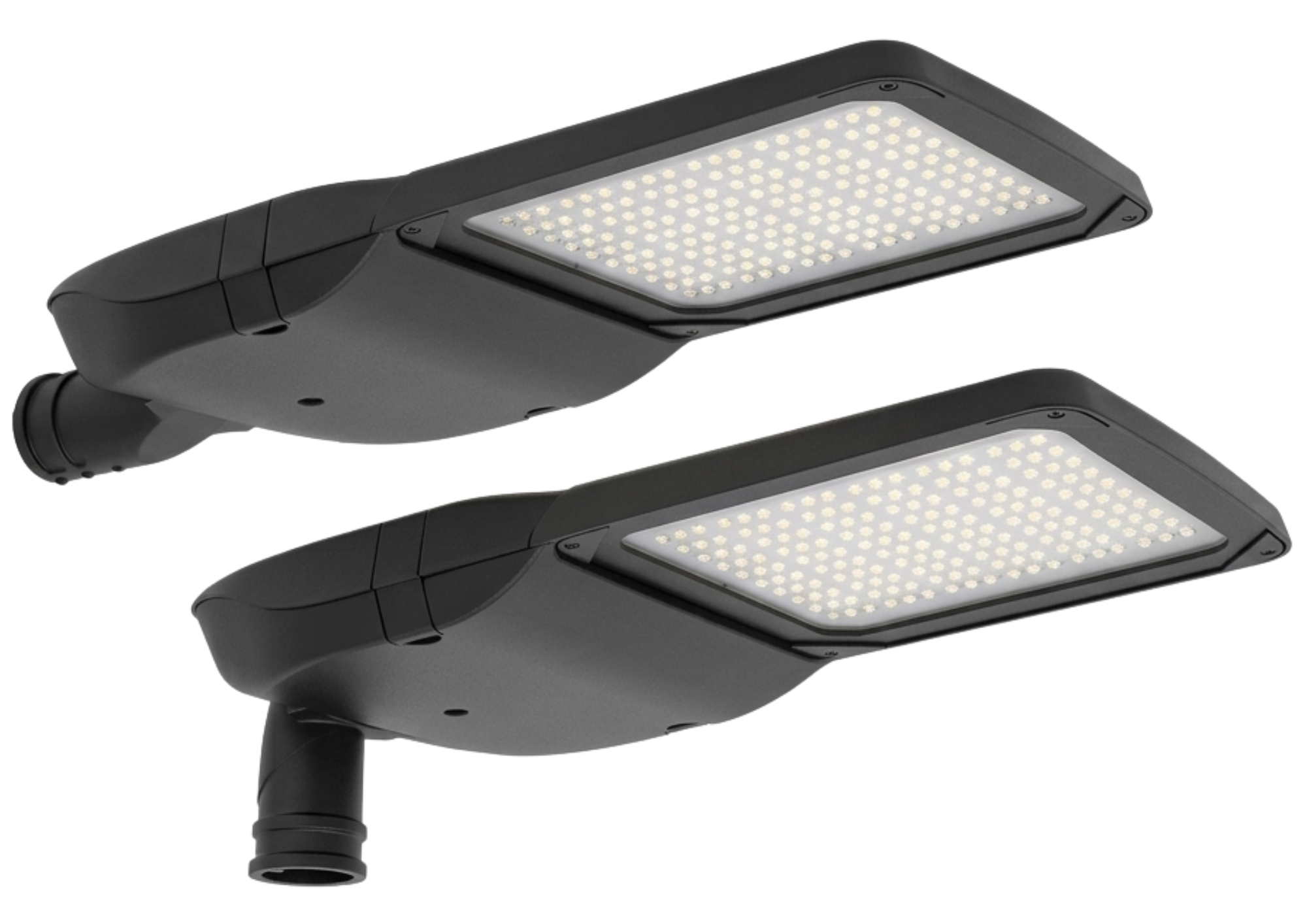

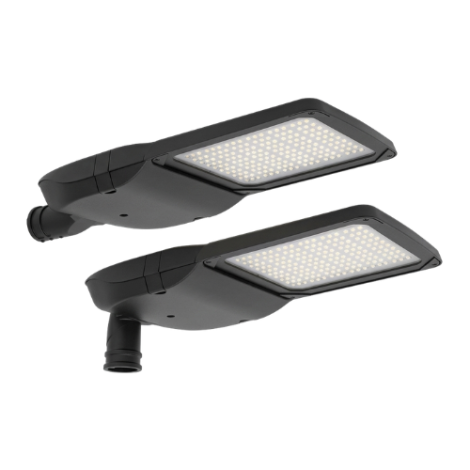

Motorway Area light

Car Park LightsMarch 6, 2026March 6, 2026

Specifications

Main body is made of Die-casting aluminum alloy.
• The diffuser is a clear tempered glass for high efficiency and vandal resistance.
• Lumileds LED Meanwell driver.
• Easy access to the LED and driver with tool-free.
• 3000K standard with other CCT options.
colour: Black, Other colour available.
• IP66.
• IK09.
• 10KV/20KV SPD options.
• NEMA socket/ZHAGA socket options.
• Spitgot dia Φ60mm.

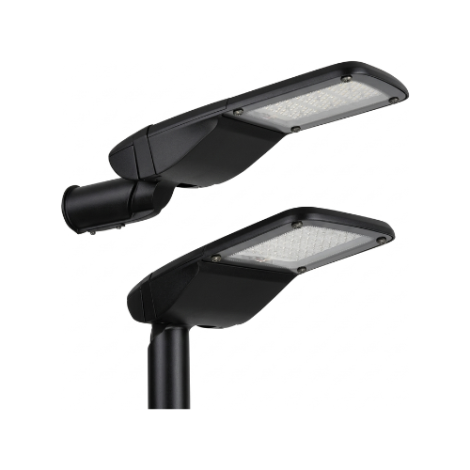

A Road Streetlight

Car Park LightsMarch 5, 2026March 5, 2026

Specifications

Main body is made of Die-casting aluminum.
The diffuser is a clear tempered glass for high efficiency and vandal resistance.
Lumileds LED and Meanwell driver.
3000k with other CCT options.
Tamper-proof fixings for increased vandal resistance.
Colour: Black, standard, other colour available.
IP66.
IK09.
10KV/20KV SPD options.
NEMA socket/ZHAGA socket options.
Spitgot dia Φ60mm.

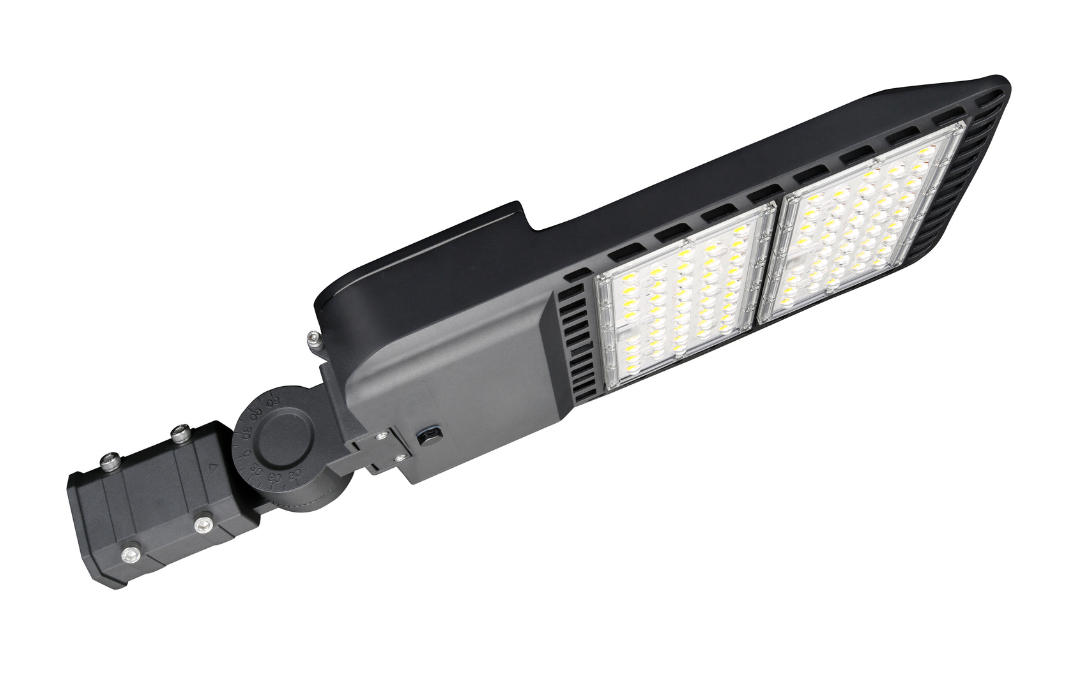

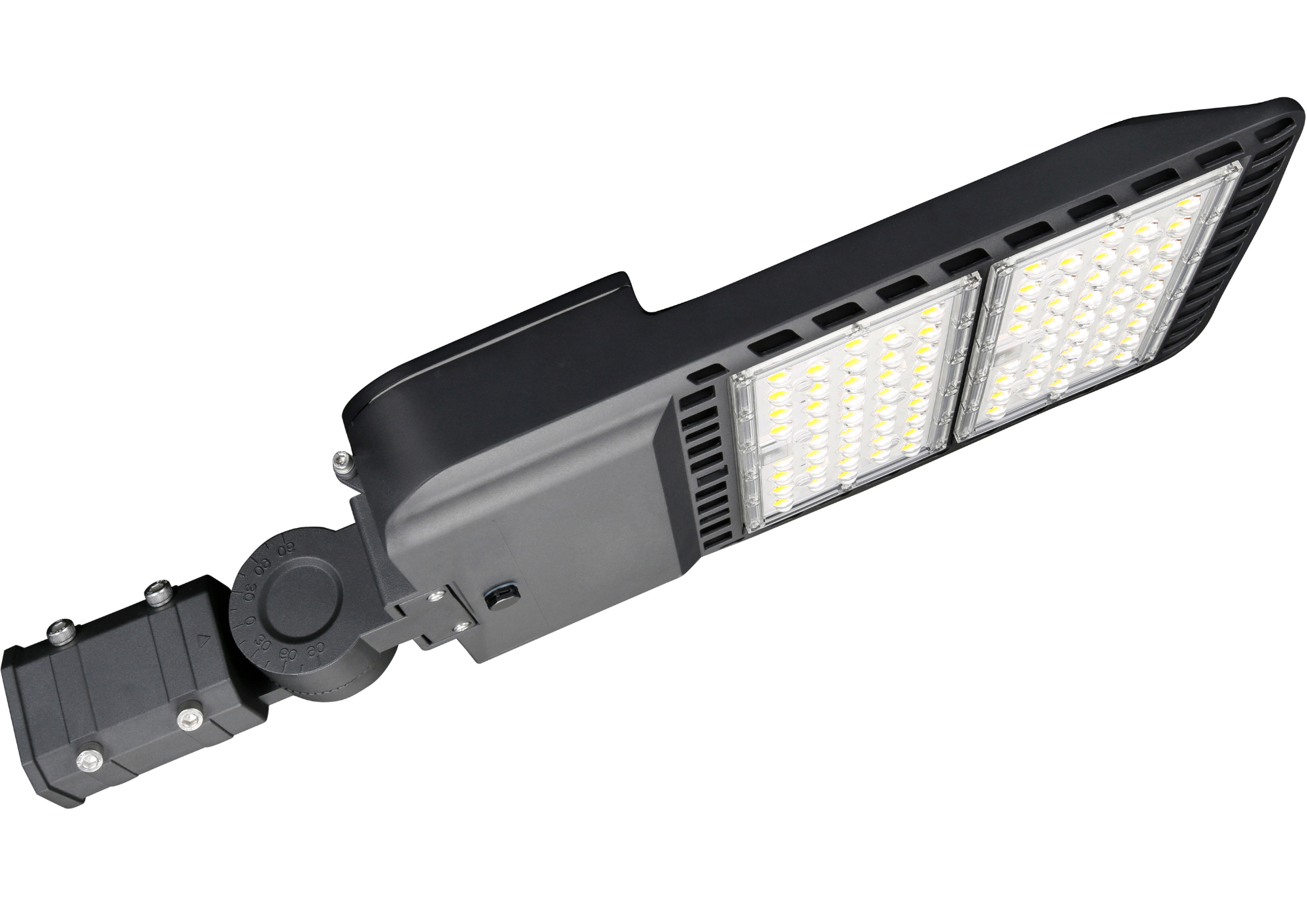

Maxi Square Area-lighter

Car Park LightsFebruary 23, 2026February 23, 2026

Specifications

Cast aluminium one-piece body.
IP66 Rated.
Powdercoat Finish Black.
150-watt LED.
Lumileds LED Module.
Meanwell Driver.
Lumen Output: 22,000 LM.
Colour Temperature 4000K.
Spigot 60mm dia x 100mm High.
Input Voltage AC100-277V.
LED life >50,000.
IK10.

Dimensions

h: 651mm x w: 312 mm

60mm spigot

Part Number

DL-IP570-AL-150L

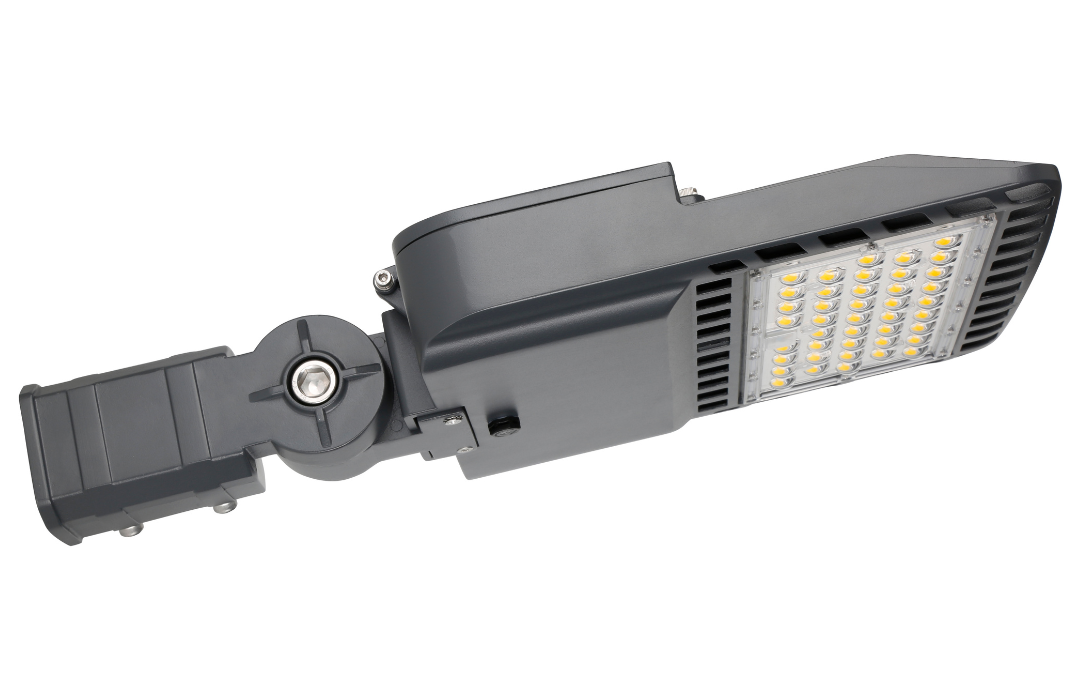

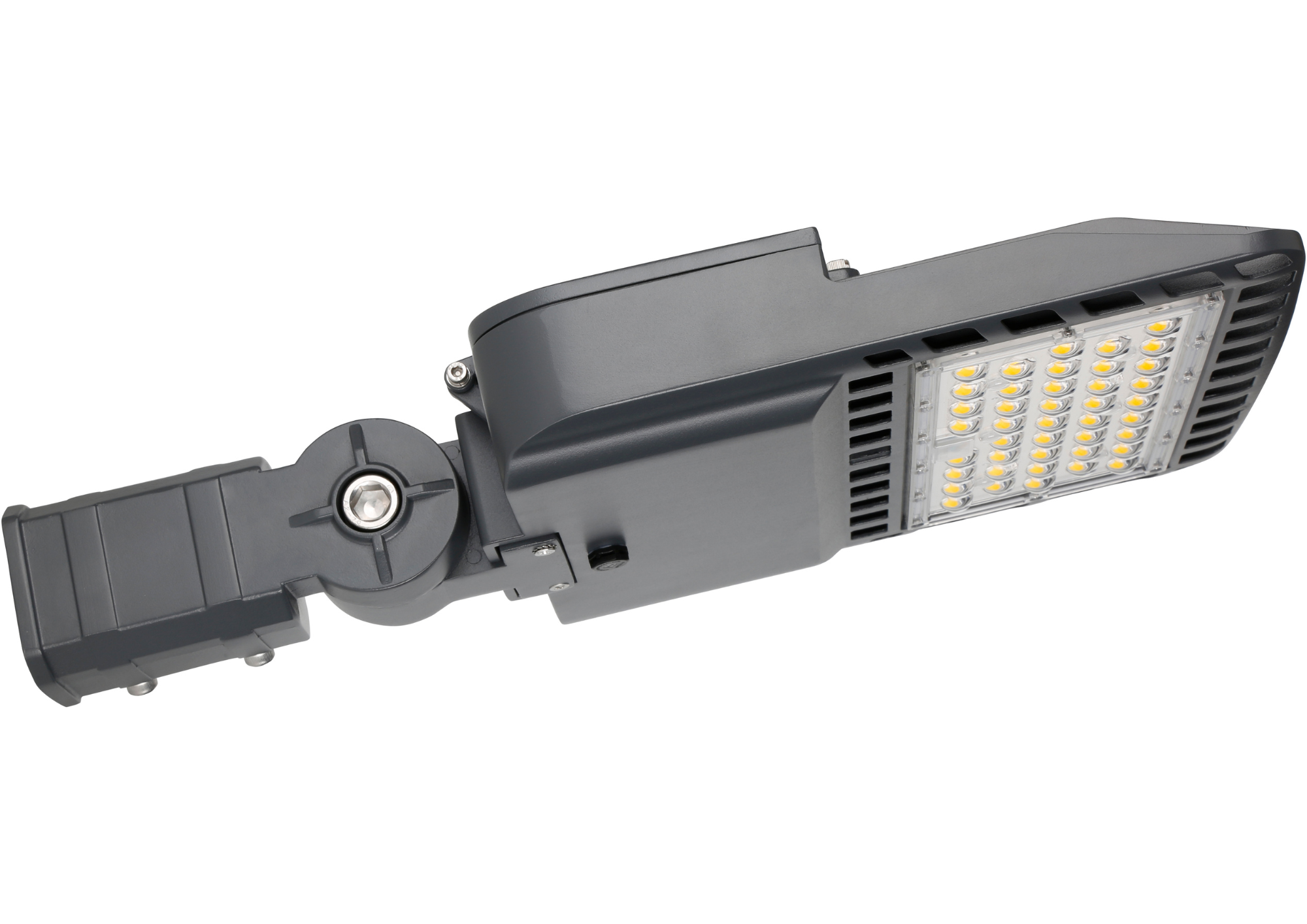

Mini Square Area-lighter

Car Park LightsFebruary 23, 2026February 23, 2026

Specifications

Die-cast aluminium one-piece body.
Cast aluminium Hinged frame.
IP66 Rated.
Spigot adaptor to suit 60mm OD x 100mm High spigot.
76-watt LED.
48 Piece Lumileds.
Colour Temperature 4000K.
Lumen output: 10,000LM.
LED life > 50,000 Hr.
IK10.
Meanwell power supply.

Dimensions

h: 524mm x w: 312 mm

60mm spigot

Part Number

DL-IP318-AL-70

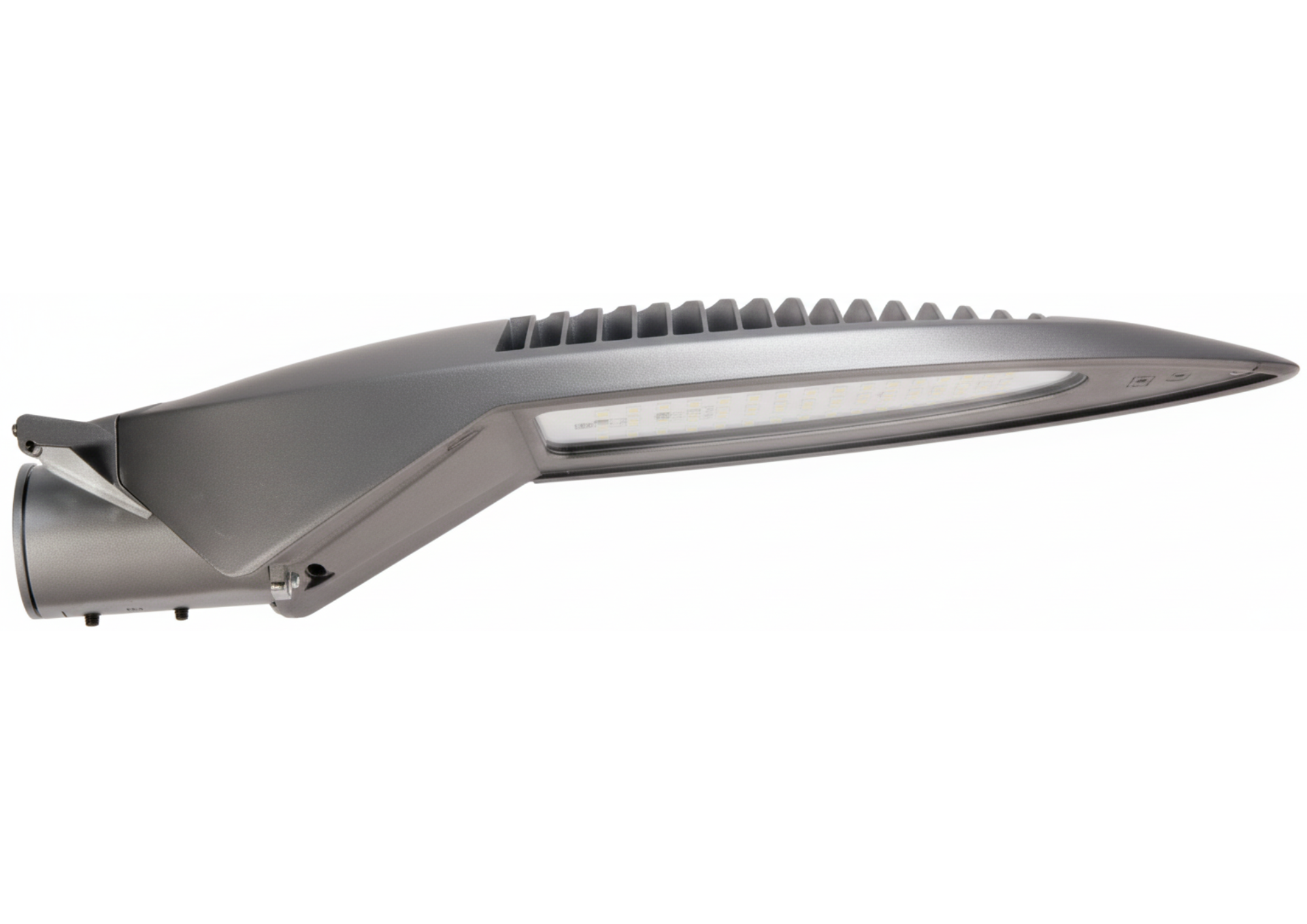

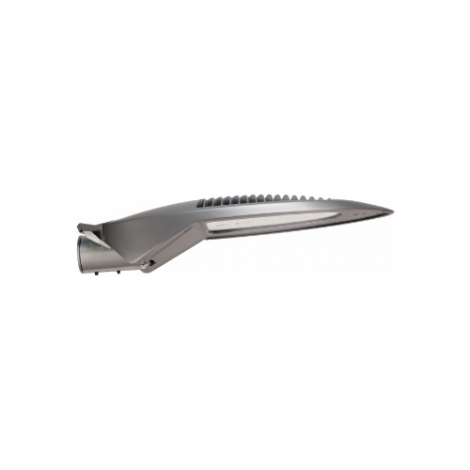

Kick70 LED Street Light

Car Park LightsFebruary 23, 2026February 23, 2026

Specifications

IP65 Rated.
60mm Spigot.
70watt LED.
60 Pieces 3535 LED chips.
Spigot adjustable to Vertical or Horizontal.
Colour temperature 4000K.
Powdercoat finish Silver/Grey.
Input Voltage AC100-277V.
Lumen output 9,800Lm.
K10 Rating.
Colour rendering >70.
LED Life >50000hr.

Dimensions

h: 644mm x w: 303 mm

60mm spigot

Part Number

DL-SL-09B-70

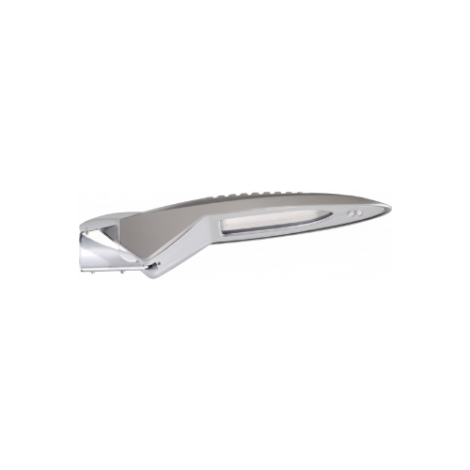

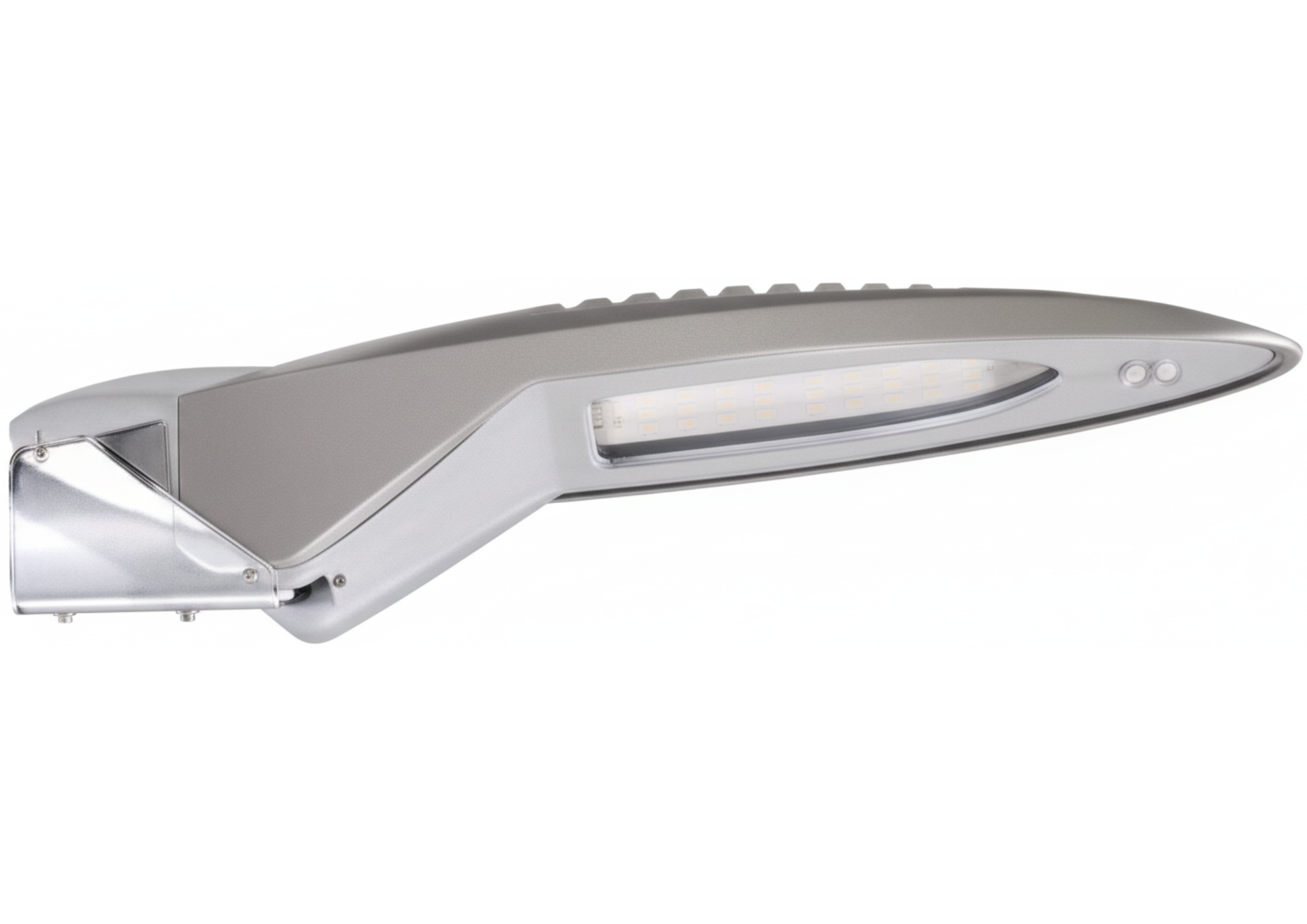

Kick44 LED Street Light

Car Park LightsFebruary 23, 2026February 23, 2026

Specifications

IP65 Rated.
48mm Spigot.
Powder-coated finish Silver.
Spigot adjustable to Vertical or Horizontal.
KICK 44watt LED.
18-piece LED module.
Input Voltage AC100-277V.
Colour temperature 4000K.
Lumen Output 4.800LM.
LED Life >50000hr.

Dimensions

h: 474mm x w: 238 mm

48mm spigot

Part Number

DL-SL-LED-09A-44W

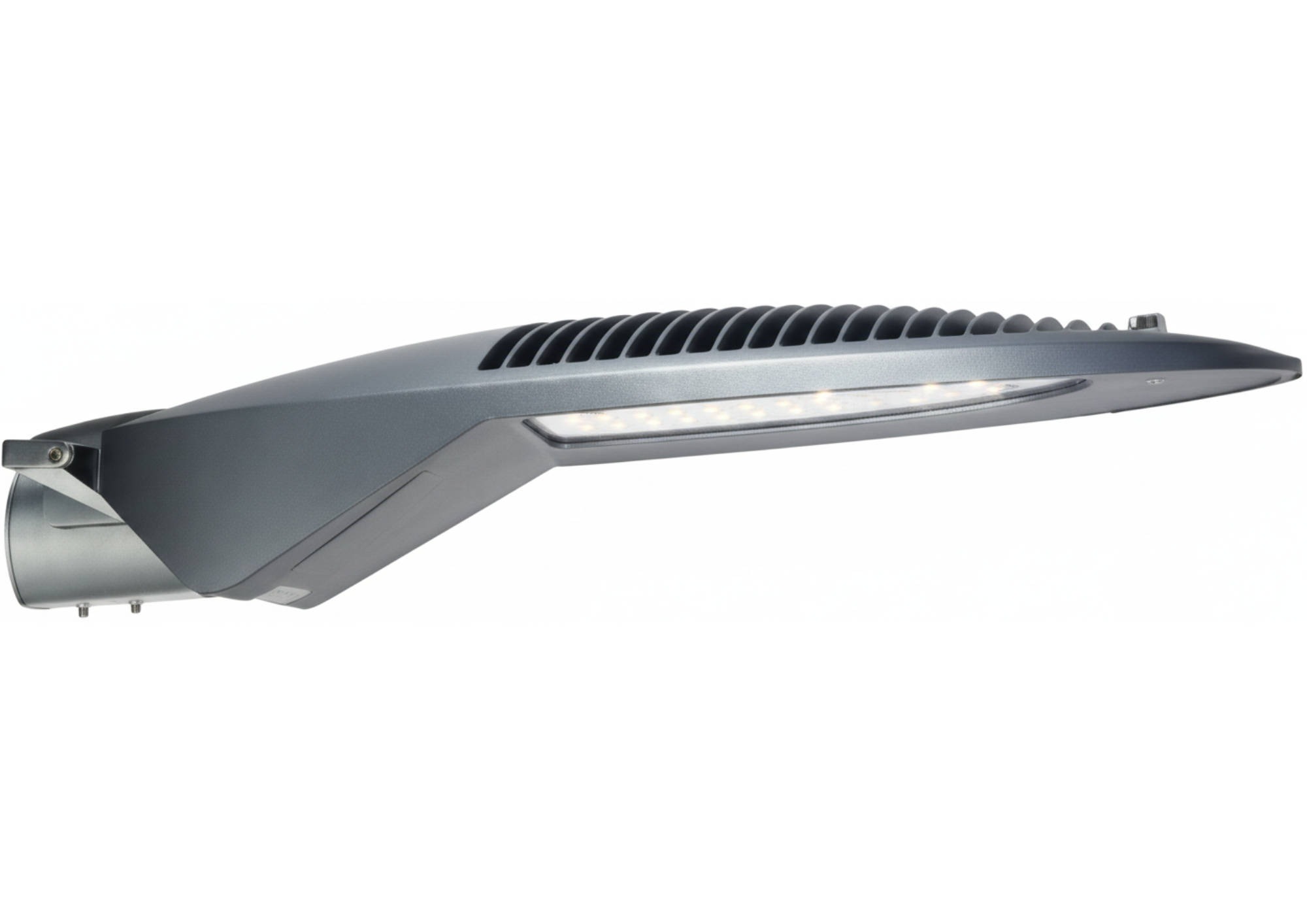

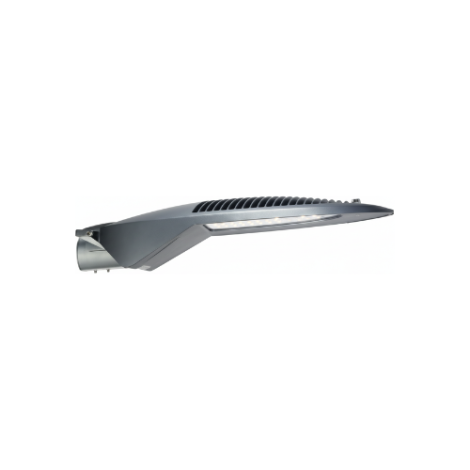

Kick100 LED Street Light

Car Park LightsFebruary 23, 2026February 23, 2026

Specifications

IP65 Rated.
Die-cast aluminium body.
Clear glass diffuser.
48 Piece Lumileds 5050 Chips.
Meanwell/Inventronic Driver.
100-watt LED.
Lumen output: 14,000 Lumen.
Horizontal or Vertical 60mm spigot.
Powder-coated finish Silver.

Dimensions

h: 864mm x w: 375 mm

60mm spigot

Part Number

DL-SL-LED-09C-100L
